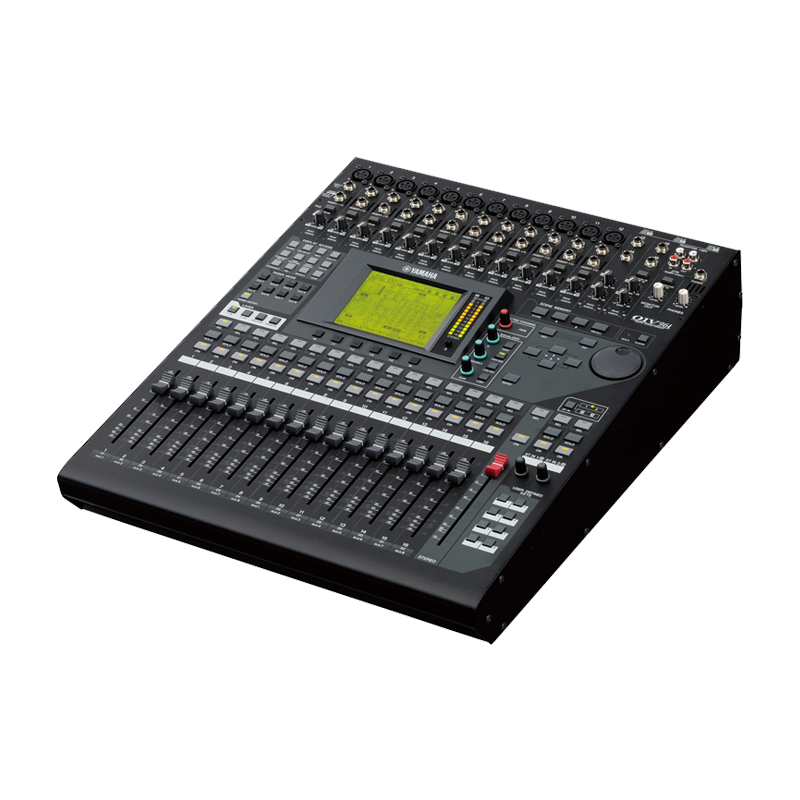

在現場演出環境中，實時多軌錄音的需求日益增加，01V96i正是為了滿足此類需求應運而生。01V96i采用了USB2.0連接方式—它可以有效地幫助您將自己的錄音棚隨帶于身。 僅通過一根USB數據線完成16 in/16 out 96kHz 的實時高品質音頻數據在調音臺與PC端DAW數字音頻工作站的無縫傳輸，專業?錄音作品的錄制和編輯將變得的簡便。同時，USB2.0連接還負責兩路MIDI控制數據的通訊，這樣您便可以通過附贈的Cubase AI軟件將您在調音臺上精確的物理控制內容和軟件端控制完美同步連接起來。
| 01V96i | ||
|---|---|---|
| Mixing capability | Mixing channels | 32 Mono + 4 Stereo |
| GROUP | 8 | |
| AUX | 8 | |
| MAIN | Stereo | |
| Input channel functions | Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan | |
| Output channel functions | Attenuator, 4-band PEQ, Compressor, Delay | |
| On-board processors | 4x SPX multi effectors | |

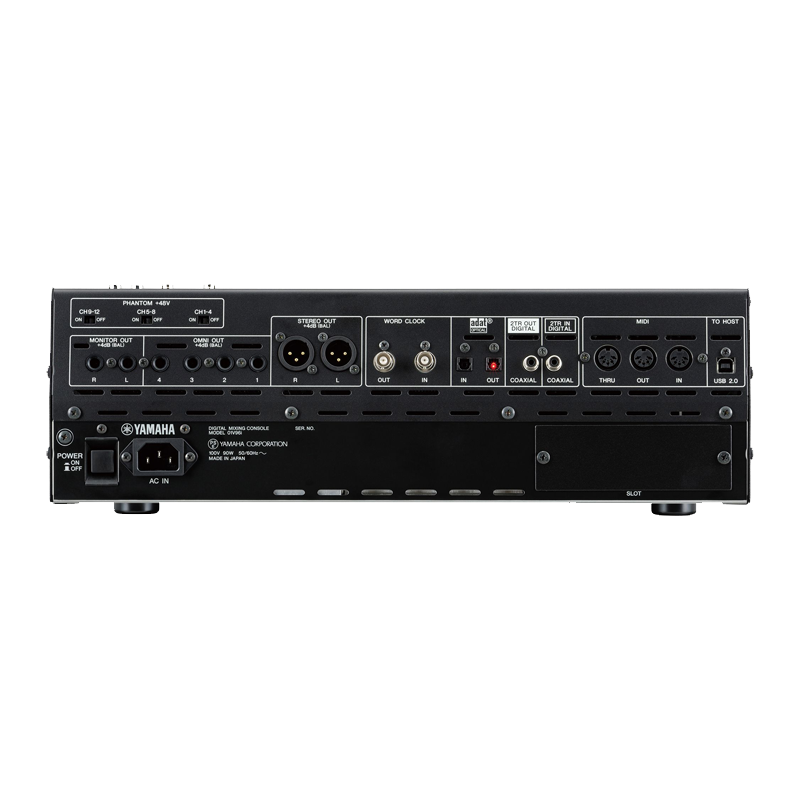

| I/O | Mic inputs | 12 |
| Phantom power | +48V DC; ON/OFF per 4ch | |
| Line inputs | 2x Stereo, 2x 2tr in | |
| AD converter | 24-bit; 128-time over sampling | |
| Line outputs | Stereo output, Monitor output, 4x Omni output | |
| DA converter | 24-bit; 128-time over sampling | |
| Digital I/O | ADAT (8-in/8-out), 2tr in/out | |
| Expansion slots | Mini-YGDAI (16-in/16-out) | |
| Control and others | To Host(USB), MIDI, Word clock I/O | |
| Internal processing | 32bit, Accumulator: 58bit | |
| Sampling frequency rate | Internal | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| External | 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) | |
| Signal delay | Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz) | |
| Total harmonic distortion | CH INPUT to STEREO OUT: Less than 0.05%, 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 48kHz) / Less than 0.05%, 20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 96kHz) | |
| Frequency response | CH INPUT to STEREO OUT: 0.5, -1.5dB, 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5, -1.5dB, 20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz) | |
| Dynamic range | 110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz | |
| Hum & noise level | Equivalent input noise | -128dBu Equivalent Input Noise. |
| Residual output noise | -86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT: STEREO fader at nominal level and one CH INPUT fader at nominal level | |
| Crosstalk | -80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output | |
| Power requirements | AC100V, 120V, 220-240V 50/60 Hz | |
| Power consumption | 90W | |
| Dimensions | W | 436mm; 17-1/8in |
| H | 148mm; 5-7/8in | |
| D | 548mm; 21-5/8in | |
| Net weight | 14kg; 30.86lbs | |
| Others | Fader: 100mm motorized x17 | |
